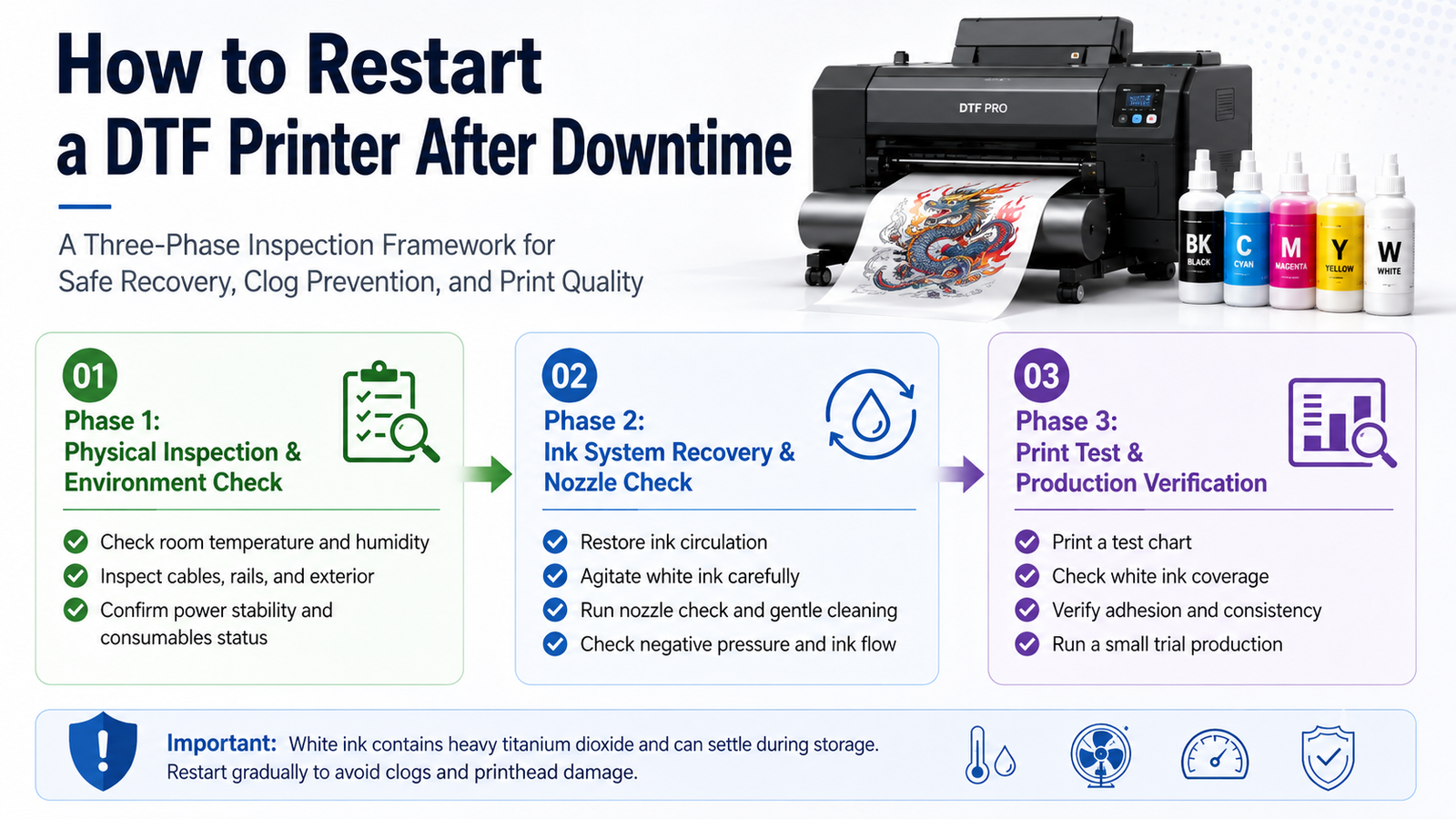

A Comprehensive Technical Guide to Re-Commissioning R1390 DTF Printers: A Three-Phase Inspection Framework

Introduction

Re-commissioning a Direct-to-Film (DTF) printer after a period of downtime requires a systematic approach to prevent hardware damage and ensure optimal print quality. Due to the high viscosity of DTF pigment inks—particularly white ink, which contains heavy titanium dioxide—hasty startups can lead to severe printhead clogging or mechanical failure. This guide outlines a rigorous, three-phase framework designed to safely transition your DTF printing equipment from storage back into active production.

Phase 1: Power-On and Device Self-Test

The initial power-on sequence is critical for verifying the integrity of the printer's mechanical motion and electrical systems before any ink processing begins.

Mechanical Initialization

Upon turning on the main power supply, close attention must be paid to the printhead carriage assembly. The carriage should automatically actuate, executing a horizontal scanning motion left and right across the linear guide rails, before smoothly returning to its capping station (home position).

• Normal Operation: Successful homing indicates that the mechanical motion system, stepping motors, and encoder strip are functioning correctly.

• Abnormal Operation: If the carriage fails to initialize, exhibits a stuttering motion, or causes a physical collision/impact at either end of the scanning axis, the printer must be powered down immediately. If this occurs alongside a red error light on the control panel, operators must consult the hardware troubleshooting matrix before proceeding.

Control Panel LED Diagnostics

Once the boot-up sequence concludes, the status of the top row of LEDs on the control panel serves as the primary diagnostic interface:

• Standby Mode (Normal): Only the Power LED remains solid yellow. This light transitions to a flashing state during active printing tasks.

• Error State (Abnormal): If any single LED illuminates solid red, if multiple LEDs remain solid red simultaneously, or if they flash alternately, a system fault has occurred. Operators must decode the specific flashing pattern to isolate mainboard or mechanical errors.

  Problems	Causes	Solutions
  The printer doesn’t run.	The connection between the printer and the power supply is loose or in poor contact.	Check the connection between the printer and the power supply for looseness or poor contact.
  The printer doesn’t run.	The printer is not turned on.	Flip the power switch to I, then press “Power button” to turn on the printer.
  The printer doesn’t run.	The power cord is worn out.	Replace it with an identical one.
  The printer doesn’t run.	The mainboard is short circuited.	Have a professional repair or replace it.
  The delete indicator light is on.	There are too many printing tasks.	Delete any abnormal printing tasks.
  Both the error indicator light and the delete indicator light are on.	The ink cartridge holder is not in the correct position.	1.Press the locking lever while lifting and moving the holder to the middle of the printer. 2.Turn off the printer completely and then restart the printer.
  All three indicator lights are red.	There is an issue with the mainboard.	Have a professional replace it.
  The ink cartridges or ink tubings are clogged.	The gypsum component in the white ink is clogging the printheads or ink tubings.	1.Use the syringe to extract the ink from the waste ink tubing, then hold “Ink-drop Button” for 3 seconds to start cleaning. 2.Replace the clogged cartridges or ink tubings.

Environmental and Thermostat Verification

DTF printing requires precise temperature control for proper ink reception on the film. Monitor the readings on the temperature control panel during startup. Within one minute of powering on, the current temperature should reach the preset target value or stabilize within approximately $2^\circ\text{C}$ below it. The PID feedback loop will cause the temperature to fluctuate slightly around this preset value. A temperature that spikes or remains consistently higher than the target indicates a malfunctioning heating element or thermocouple, posing a safety hazard.

Phase 2: Fluid Dynamics — Ink Supply and Waste Ink Management

Once the hardware passes inspection, the fluid delivery and evacuation systems must be checked to prevent starvation, color contamination, or hazardous spills.

Waste System Maintenance

The external waste ink bottle located at the rear of the unit must be inspected prior to any head purging. If the waste ink volume has exceeded 50% capacity (1/2 full), it must be drained and thoroughly cleaned.

This step is vital because the subsequent priming and deep cleaning cycles will discharge a significant volume of ink; an unmaintained waste tank will overflow, risking damage to internal electronics and the surrounding workspace.

Bulk Ink Replenishment and Brand Migration

Check the fluid levels in the CMYK and White bulk tanks, topping them off with dedicated DTF pigment inks if they run low.

⚠️ Critical Operational Notice: Never mix different formulations or brands of DTF ink. If a brand migration is required, the entire ink delivery system—including the bulk tanks, sub-tanks, ink lines, and dampers—must be completely drained and flushed with a dedicated cleaning solution before introducing the new ink brand. Mixing incompatible inks triggers chemical coagulation, instantly destroying the printhead.

Damper Priming and Air Elimination

Visually inspect the ink lines and dampers for channel starvation, ink separation, or air pockets. If air locks are present, follow this tiered corrective workflow:

1. Ensure the bulk ink tanks are adequately filled to maintain proper head pressure.

2. Execute a standard software-driven printhead cleaning cycle.

3. In cases of severe starvation where ink has receded entirely down the tubes, manually prime the system. Use a syringe to gently draw ink through the dampers and waste tubes until all air is evacuated, then follow up with a standard software head clean.

Phase 3: Software Connectivity and Functional Nozzle Diagnostics

The final phase validates communication between the host PC and the printer, culminating in a quantified assessment of the printhead's physical condition.

Software Linkage and Initial Purging

Establish a stable data connection between the printer and the host computer via the interface cable, then launch your Raster Image Processor (RIP) software. If utilizing Acrorip 9.03, navigate to the top-right corner of the main user interface and select File $\rightarrow$ Head Cleaning. This command triggers an initial automated purge, clearing any microscopic debris or stagnant ink out of the nozzle plate.

Nozzle Check Execution

Load a sheet or roll of premium DTF Transfer Film into the printer's feed mechanism. Navigate back to the software interface and select File $\rightarrow$ Nozzle Check. This outputs a precise test grid onto the film, mapping every active nozzle channel for evaluation.

Nozzle Status Diagnostic Standards

Operators must inspect the printed grid lines under good lighting and evaluate the printhead status according to the following strict industrial standards:
